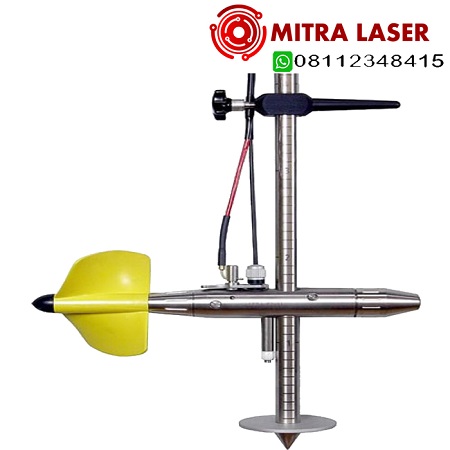

Current Meter Seba Hydrometrie F1 Universal
Precision mechanics made in Germany. Even the most cutting-edge measurement methods for mobile flow measurement must first prove themselves against the hydrological universal current meter. The SEBA universal current meter has been used worldwide for decades and has proven itself in the most adverse conditions.
Variable:
The SEBA F1 universal current meter can be operated both on a Ø 20 mm rod as well as with a loading weight, in conjunction with a SEBA single winch type SEWII or double-acting winch SDW-ES. By default, the impeller body is fixed to the rod by means of a locking screw. Alternatively, the F1 can also be fitted on a push-over linkage to ensure a rapid vertical up and down movement. In a further variant with a flow direction fin, the universal current meter rests easily on the rod where it always exactly assumes the direction of the flow. A wide range of different impeller blades made of plastic and aluminum with 80 mm or 125 mm diameter and different pitch axial flow impellers are available, so as to optimally adapt to the respective flow conditions.
Low maintenance:
The F1 is undemanding and even during intensive use, it generates hardly any operating and maintenance costs. For highest accuracy requirements, we recommend regular calibration of the impeller blades in the measurement channel.
Last but not least:
For display and analysis of the impeller pulse, the user is spoiled for choice: between the robust SEBA Counting device Z6 or the field-proven tablet PC HDA-Pro. The latter provides the possibility to evaluate the impeller pulses directly with the proven Software Q 3.1 (incl. “impeller” module)
Features:
Robust, hydrological impeller for flow measurement on a Ø 20 mm rod or on a load weight (float wings)
Point measuring method (detection point velocities in the measuring verticals)
Suitable for measurements in watercourses with low to high flow rates
Different wing vanes available for different applications
Connects to Counting device Z6 or to a notebook or tablet PC HDA-Pro, operated with Software Q 3.1 and “impeller” module
What’s In The Box:
F1 170 SEBA universal current meter F1
F1 17025 gound stop for propeller Ø 125 mm or 80 mm
F1 17026 incl. standard accessories without instrument case
F1 17005 Plastic propeller (velocity range: 0,025 – 10,0 m/s)
F1 17047 Rod Ø 20 mm, 3 m long, 3 sections
F1 1704804-10 extension of rod, per m
F1 17028 connection cable 4 m round cable, 2 cores with plugs
F1 17058 Canvas bag with carrying strap
F1 17027 Instrument case
F1 19901 SEBA signal counter Z6
F1 19912 Z6-V SEBA velocity module
F1 17018 Standard calibration on rod Ø 20 mm
F1 17019 Velocity table for standard calibration
F1 17025 Ground stop long for propeller Ø 125 mm
F1 17054 direction indicator for rod Ø 20 mm
Catatan: Harga tidak mengikat, sewaktu waktu bisa berubah tanpa pemberitahuan dahulu
Untuk info harga terbaik Current Meter Seba Hydrometrie F1 Universal dan membutuhkan Surat Penawaran Harga silahkan Hubungi kami di Telp/Whatsapp : 08112348415 Email : mitralaserstore@gmail.com
