Deskripsi

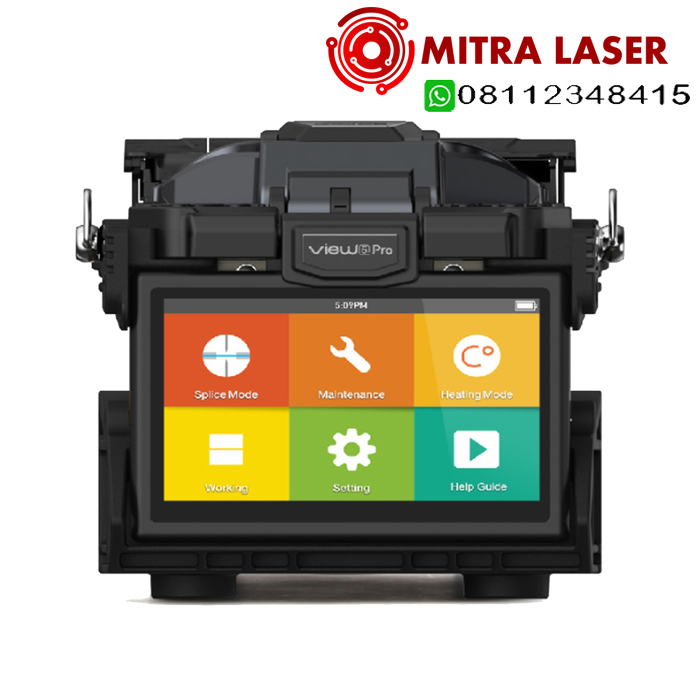

INNO View 5 PRO Fusion Splicer
INNO View 5 PRO Fusion Splicer dilengkapi dengan pemanas performa tinggi yang memberikan proses pemesinan yang lebih cepat dan hemat daya, serta presser serat keramik yang stabil dan tahan lama. Dengan harga murah dan ekonomis membuat splicer ini banyak di gunakan.
FEATURES
Built-in IoT Module for Mobile Data Communication
Web-based, Real-time Operation System
Core Alignment Splicing with DACAS Profiling System
The Highest Magnification and Resolution
5” Color LCD Touch Screen
Double Tapping ( Zoom in & Out )
Fast Heating Time
Detachable SOC Holder and Heating Oven
3 Bright LEDs for Dark Environment
User Friendliest Interface with Built-in Videos
Specifications
Model : VIEW5 PRO
Alignment Method : Core alignment
Number of fiber : Single
Applicable fibers : SM (ITU-T G.652&G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655)
Cladding Diameter : 80 ~ 150μm
Clevaed Length : 5 ~ 16mm
Typical Splice Loss*1 : SM: 0.02dB / MM:0.01dB / DS:0.04dB / NZDS: 0.04dB / G.657: 0.02dB
Return Loss : >> 60dB
Estimated Splice Loss : Available
Splice Time*2 : Quick mode : 9 sec (Avg.) / SM Auto mode : 11 sec (Avg.)
Splice Mode : Max 128 modes
Tension Test : 1.96 ~ 2.25N
Dimension : 149W x 177D x 151H mm (including rubber bumper) / 130W x 166D x 140H mm (excluding rubber bumper)
Weight : 2.21kg (with battery) / 1.85kg (without battery)
White LED : 3 White LEDs
Monitor : 5.0” Color LCD display, Full touch screen
Fiber View : X, Y, XY, X/Y
Magnification : 320 ~ 520x
Results Storage : 10,000 Splice data / 10,000 Splice image
Power Supply : AC Input 100 ~ 240V, DC Input 9 ~ 14V
Terminal : USB Type C / Nano SIM
Battery Capacity*4 : 5200mAh Battery Capacity, Typical 200 Cycles (Splice+Heat)
Electrode Life*5 : 5500 arcs discharges
Kelengkapan :
View 5 PRO Splicer
V11 Cleaver
FH-45Fiber Holders 1set
FH-SOC-RSOC Holder 1ea
HTS-SOC-02 SOC Heater Cover
JS-180300 AC Adapter
CG-22 Cooling Tray
E-50 Electrode 1set
LBT-52 Battery Pack
ACC-25 Power Cable
USB-7P USB Cable
ICC-55 Carrying Case
IWS-06 Work Tray
WTB-01 Work Tray Bolt (M6*8)
WTB-02 Work Tray Bolt (M6*14)
ST-01 Shoulder Strap 2ea
Quick Reference1ea
